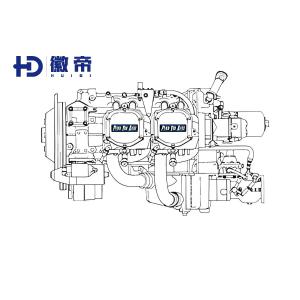

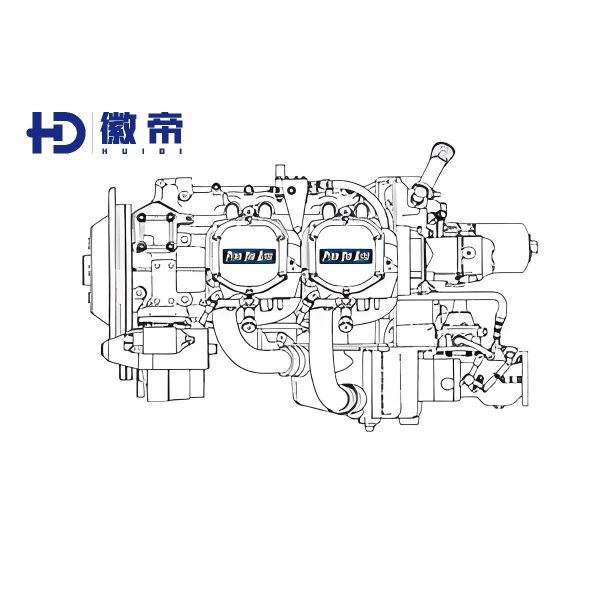

Lycoming AEIO-360 Series Aircraft Engine 180-200HP

The Lycoming AEIO-360 series is a high-performance, four-cylinder, horizontally opposed, air-cooled aircraft engine designed for both aerobatic and normally aspirated applications.

Part Number

Model	New	Rebuilt	Overhaul
AEIO-360-A1A	ENPL-RT8117	RENPL-RT8117	HENPL-RT8117
AEIO-360-A1B	ENPL-RT8510	RENPL-RT8510	HENPL-RT8510
AEIO-360-A1B6	ENPL-RT8524	RENPL-RT8524	HENPL-RT8524
AEIO-360-A1B6	ENPL-RT8592	RENPL-RT8592	HENPL-RT8592
AEIO-360-A1B6	ENPL-RT9363	RENPL-RT9363	HENPL-RT9363
AEIO-360-A1D	ENPL-RT8665	RENPL-RT8665	HENPL-RT8665
AEIO-360-A1E	ENPL-RT8516	RENPL-RT8516	HENPL-RT8516
AEIO-360-A1E	ENPL-RT8526	RENPL-RT8526	HENPL-RT8526
AEIO-360-A1E	ENPL-RT9370	RENPL-RT9370	HENPL-RT9370
AEIO-360-A1E	ENPL-RT9533	RENPL-RT9533	HENPL-RT9533
AEIO-360-A1E	ENPL-RT9719	RENPL-RT9719	HENPL-RT9719
AEIO-360-A2C	ENPL-RT9462	RENPL-RT9462	HENPL-RT9462
AEIO-360-B1B	ENPL-RT8300	RENPL-RT8300	HENPL-RT8300
AEIO-360-B1B	ENPL-10077	RENPL-10077	HENPL-10077
AEIO-360-B1F	ENPL-RT7304	RENPL-RT7304	HENPL-RT7304
AEIO-360-B1F	ENPL-RT8432	RENPL-RT8432	HENPL-RT8432
AEIO-360-B1F	ENPL-RT9887	RENPL-RT9887	HENPL-RT9887
AEIO-360-B1F	ENPL-RT10192	RENPL-RT10192	HENPL-RT10192
AEIO-360-B1F	ENPL-RT10555	RENPL-RT10555	HENPL-RT10555
AEIO-360-B1F	ENPL-RT11131	RENPL-RT11131	HENPL-RT11131
AEIO-360-B1G6	ENPL-RT8445	RENPL-RT8445	HENPL-RT8445
AEIO-360-B1H	ENPL-RT9574	RENPL-RT9574	HENPL-RT9574
AEIO-360-B1H	ENPL-RT9575	RENPL-RT9575	HENPL-RT9575
AEIO-360-B2F	ENPL-RT8661	RENPL-RT8661	HENPL-RT8661
AEIO-360-B2F	ENPL-RT8769	RENPL-RT8769	HENPL-RT8769
AEIO-360-B4A	ENPL-RT8844	RENPL-RT8844	HENPL-RT8844
AEIO-360-H1A	ENPL-RT8633	RENPL-RT8633	HENPL-RT8633
AEIO-360-H1B	ENPL-RT9472	RENPL-RT9472	HENPL-RT9472
AEIO-360-H1B	ENPL-RT10057	RENPL-RT10057	HENPL-RT10057

Key Specifications

• Type: Four-cylinder, horizontally opposed (flat-four), air-cooled
• Displacement: 361 cubic inches (5.9 liters)
• Power Output: Typically produces 180 to 200 horsepower (depending on the specific model and configuration)
• Compression Ratio: Varies by model, typically 8.5:1 or 8.7:1
• Weight: Approximately 260 to 280 pounds (dry weight, depending on the model)
• Fuel Type: Aviation gasoline (100LL)
• Cooling: Air-cooled
• Ignition System: Dual magnetos for redundancy
• Redline RPM: Typically 2,700 RPM
• Fuel System: Fuel-injected (precise fuel delivery for improved performance)

Applications

The AEIO-360 engine is used in high-performance and aerobatic aircraft, including:

• Extra 200/300 (aerobatic aircraft)
• Pitts Special (aerobatic biplane)
• Christen Eagle (aerobatic biplane)
• Van's RV series (experimental aircraft)
• Lancair Legacy (high-performance experimental aircraft)

Variants

The AEIO-360 series includes several models, each tailored for specific applications. Some notable variants include:

• AEIO-360-A1A: 180 hp, fuel-injected, used in aerobatic aircraft like the Pitts Special.
• AEIO-360-B1B: 180 hp, fuel-injected, used in the Extra 200.
• AEIO-360-H1A: 200 hp, high-performance variant with increased power output.
• AEIO-360-M1A: 180 hp, fuel-injected, used in experimental and homebuilt aircraft.

Features

• Aerobatic Capability: Designed to handle the stresses of aerobatic maneuvers, including inverted flight.
• Fuel Injection: Provides precise fuel delivery, improved performance, and better fuel efficiency.
• Dual Magneto System: Ensures redundancy and reliability in ignition.
• High Power-to-Weight Ratio: Ideal for high-performance and aerobatic aircraft.
• Robust Construction: Built to withstand the rigors of aerobatic and high-performance operations.
